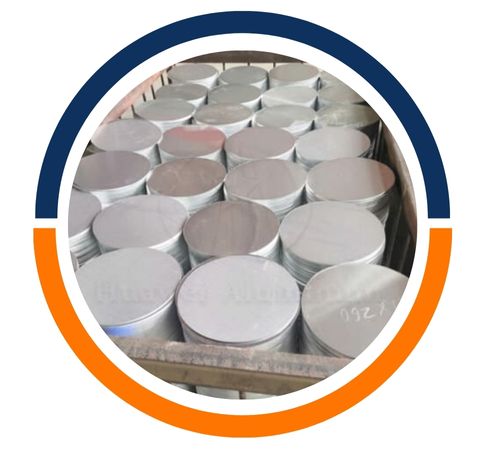

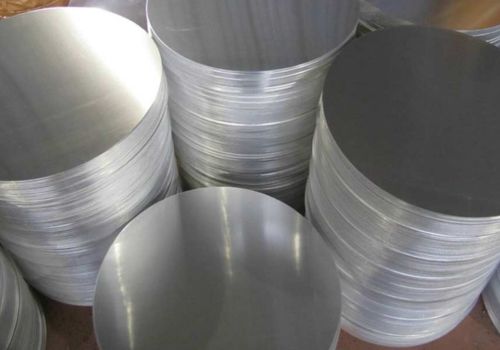

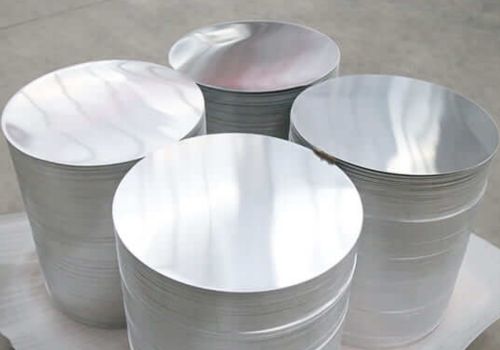

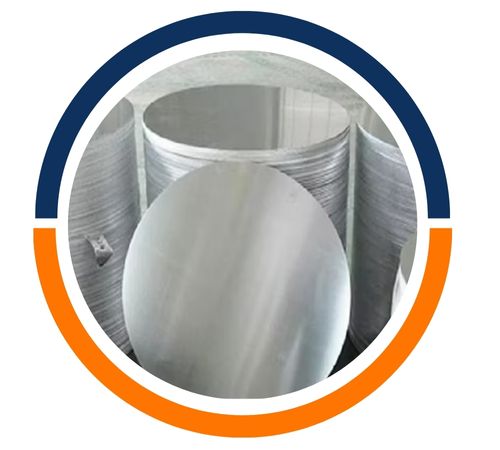

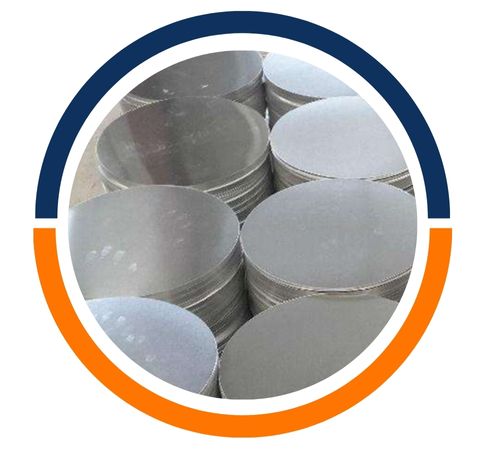

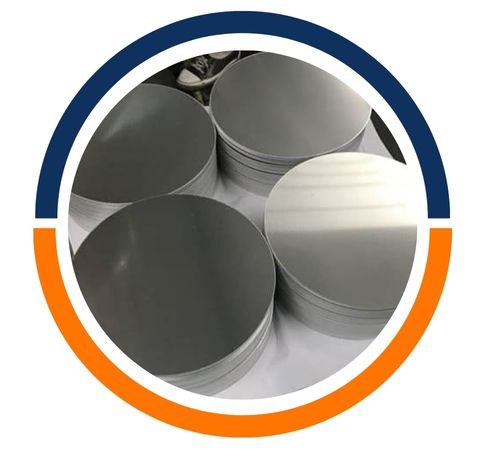

Joey Aluminium is a leading manufacturer and provider of Aluminium 2024 circles based in Houston, USA. Their cutting-edge processes involve top-grade aluminium–copper alloy and sophisticated rotary cutting and rolling methods that guarantee high quality, dimensional accuracy, and surface integrity. With tight tolerances and varieties of tempers (such as T4 and T6), Joey Aluminium provides circles designed to stringent engineering and aerospace standards. Renowned for consistent batch quality, rigorous testing, and regular delivery schedules, they supply global markets demanding high-strength structural parts and precision discs.
Aluminium 2024 discs are manufactured from a heat-treatable alloy with around 4 % copper as a main component, supplemented with magnesium and manganese to improve strength and resistance to fatigue. In T3 or T6 temper processing, they have high tensile strength (\\~470–505 MPa) and yield strength (\\~325–470 MPa), but elongation is in the 10–15 % range. While corrosion resistance is fair, it can be improved by coatings or anodizing. Excellent machinability is supported by the fine-grain structure, and these circles are resistant to high loads and cyclic stress, with their suitability for engineered pieces with both toughness and precision.
| Specifications | ASTM B209 / ASME SB209 |
|---|---|
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 1 Mm To 100 mm |
| Diameter | Upto 2000 mm |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max |

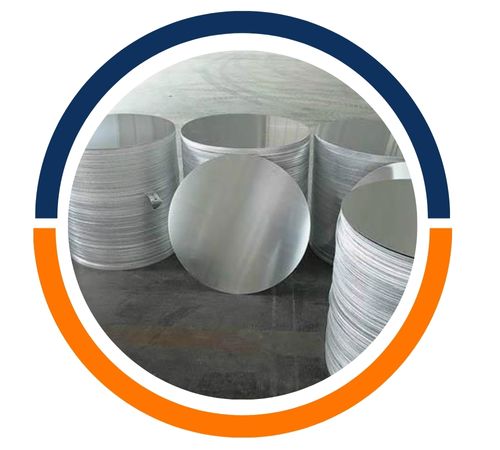

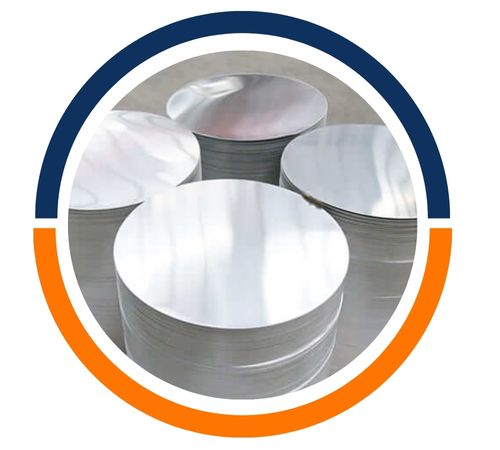

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles |
| Finish | Mill, Customer specific finish |
| Aluminum Circle Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92024 | AlCu4Mg1 | 2024 | AlCuMg2 |
Joey Aluminium based in Houston , USA is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 2024 Circles to meet specific project needs. Our team at Joey Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@joeyaluminium.us
Aluminium 2024 circles find extensive use in applications that have high mechanical performance requirements. In aerospace, they apply to aircraft structure components, bulkheads, skins, and fittings where high strength and fatigue resistance are critical. They are used in military and defense industries for missile components, armor fittings, and tough housings. They are used in automotive and motorsport in structural discs, hubs, and stress-bearing components. They are also used in heavy-duty machinery, pressure vessels, and high-performance devices where light but strong discs are necessary. Their strength, fatigue life, and accuracy make them the first choice for applications that require a high level of performance.
