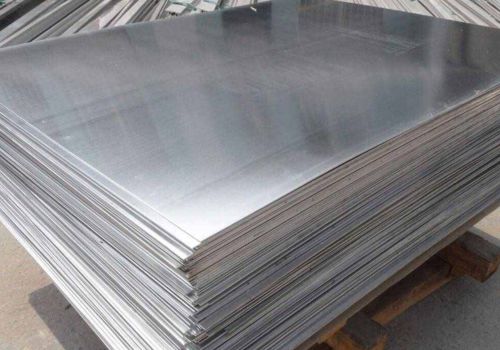

A reputable producer and supplier of premium aluminium 1050 sheets and plates, Joey Aluminium is based in Houston, Texas, in the United States. These products, which are well known for their outstanding purity and formability, are perfect for uses that call for superior electrical performance, thermal conductivity, and corrosion resistance. Joey Aluminium provides a broad range of sizes and thicknesses to satisfy various industrial needs, all while being manufactured in accordance with international standards using cutting-edge techniques. The company, which serves industries like electrical, chemical, food processing, and architectural design, guarantees reliable quality, affordable prices, and timely delivery. Joey Aluminium is dedicated to providing dependable aluminium solutions along with excellent technical support and customer service.
With trace amounts of iron, silicon, copper, and manganese, aluminium 1050 Sheets and Plates are composed of at least 99.5% aluminium. Superior thermal and electrical conductivity, high ductility, and outstanding corrosion resistance are all guaranteed by this high purity. In terms of mechanical properties, aluminium 1050 has a tensile strength of roughly 70–100 MPa, a yield strength of roughly 30–50 MPa, and an elongation of up to 35%. It is not heat-treatable, but cold working can make it stronger. It is perfect for applications needing lightweight, conductive, and corrosion-resistant materials because of its soft nature, which makes it simple to form, machine, and weld.
| Standards | ASTM B209 / ASME SB209 |
| Temper | O,H12,H14,H16,H18,H19,H22,H24 |
| Thickness | 0.2-50 |
| Width | 100-2600 |
| Length | 500-10000 |
| Surface | Bright, polished, hair line, brush, sand blast, embossed, etching, etc. |
| Finish | Mill, Customer specific finish |
| Aluminum Sheet/ Plate Coating | PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Joey Aluminium based in Houston , USA is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | BS (OLD) | USA (AA) | GERMANY (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-1050 A | 1E | 1050 | Al99.5 | Al99.5 | 19500, 19501 | 1 S |
| Sizes (mm) | Theoretical Mass KG/Plate |
|---|---|
| 2000 X 1000 X 0.5 | 2500 X 1250 X 0.5 |
| 2000 X 1000 X 0.7 | 2500 X 1250 X 0.7 |
| 2000 X 1000 X 0.9 | 2500 X 1250 X 0.9 |
| 2000 X 1000 X 1.2 | 2500 X 1250 X 1.2 |
| 3000 X 1500 X 1.2 | 2000 X 1000 X 1.6 |
| 2500 X 1250 X 1.6 | 3000 X 1500 X 1.6 |
| 2000 X 1000 X 2.0 | 2500 X 1250 X 2.0 |
| 3000 X 1500 X 2.0 | 2500 X 1250 X 2.5 |
| 2.79 | 4.36 |
| 3.91 | 6.10 |
| 5.02 | 7.85 |
| 6.74 | 10.46 |
| 15.01 | 8.93 |
| 13.95 | 20.09 |
| 11.16 | 17.44 |
| 25.11 | 21.80 |
| Product | Thickness | Weight |
|---|---|---|
| 1050 Aluminium Plate | 0,30 mm | 0,810 Kg/m2 |
| 1050 Aluminium Plate | 0,40 mm | 1,080 Kg/m2 |
| 1050 Aluminium Plate | 0,50 mm | 1,350 Kg/m2 |
| 1050 Aluminium Plate | 0,60 mm | 1,620 Kg/m2 |
| 1050 Aluminium Plate | 0,70 mm | 1,890 Kg/m2 |
| 1050 Aluminium Plate | 0,80 mm | 2,160 Kg/m2 |
| 1050 Aluminium Plate | 0,90 mm | 2,430 Kg/m2 |
| 1050 Aluminium Plate | 1,00 mm | 2,700 Kg/m2 |
| 1050 Aluminium Plate | 1,20 mm | 3,240 Kg/m2 |
| 1050 Aluminium Plate | 1,40 mm | 3,780 Kg/m2 |
| 1050 Aluminium Plate | 1,50 mm | 4,050 Kg/m2 |
| 1050 Aluminium Plate | 1,60 mm | 4,320 Kg/m2 |
| 1050 Aluminium Plate | 1,80 mm | 4,860 Kg/m2 |
| 1050 Aluminium Plate | 2,00 mm | 5,400 Kg/m2 |
| 1050 Aluminium Plate | 2,20 mm | 5,940 Kg/m2 |
| 1050 Aluminium Plate | 2,50 mm | 6,750 Kg/m2 |
| 1050 Aluminium Plate | 3,00 mm | 8,100 Kg/m2 |
| 1050 Aluminium Plate | 4,00 mm | 10,800 Kg/m2 |
| 1050 Aluminium Plate | 5,00 mm | 13,500 Kg/m2 |
| 1050 Aluminium Plate | 6,00 mm | 16,200 Kg/m2 |
| 1050 Aluminium Plate | 10,00 mm | 27,000 Kg/m2 |
| 1050 Aluminium Plate | 12,00 mm | 32,400 Kg/m2 |
| 1050 Aluminium Plate | 15,00 mm | 40,500 Kg/m2 |
| 1050 Aluminium Plate | 20,00 mm | 54,000 Kg/m2 |
Yes, we offer custom sizes for Aluminium 1050 Sheets and Plates to meet specific project needs. Our team at Joey Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@joeyaluminium.us
Industries requiring superior thermal and electrical conductivity as well as high corrosion resistance frequently use aluminium 1050 sheets and plates. Electrical busbars, chemical storage tanks, food processing machinery, architectural panelling, signage, and lamp reflectors are examples of common applications. They are employed for insulation cladding and ductwork in the HVAC sector. They are perfect for deep drawing, bending, and spinning applications because of their high formability. Additionally, these plates and sheets are used in reflective and ornamental surfaces. They are appropriate for delicate and hygienic settings like cleanrooms and pharmaceuticals because of their non-magnetic and non-toxic qualities.
