Joey Aluminium is a trusted producer and exporter of Aluminium 5005 Sheets and Plates, having its main office in Houston, USA. We supply superior quality aluminum products designed for superior corrosion resistance, good workability, and smooth finish. Aluminium 5005 is a non-heat-treatable alloy with general applications in architectural and decorative uses and general-purpose fabrication. Our Aluminium 5005 Sheets and Plates have a variety of finishes and sizes available, ranging from anodized to mill-finish. Joey Aluminium maintains high standards of quality, prompt delivery, and customized solutions, making us a go-to supplier of Aluminium 5005 Sheets and Plates in the USA.

Aluminium 5005 Sheets and Plates contain aluminium (about 98.6%) as the main component with magnesium (0.5–1.1%) as the primary alloying element, along with traces of silicon, iron, copper, and chromium. Aluminium 5005 Sheets and Plates have moderate strength with tensile strength of 190–230 MPa and yield strength of 110–190 MPa, depending on temper (usually H32 or O). The name “Aluminium 5005 Sheets and Plates” is the name of flat-rolled aluminium products applied to numerous industries for uses that involve effective corrosion resistance, superior anodizing properties, and high workability.

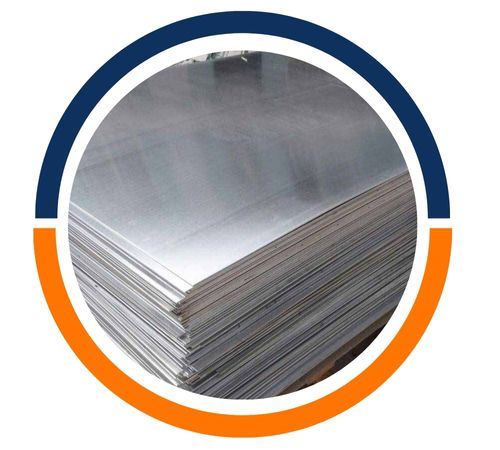

Aluminium 5005 Alloy Sheets

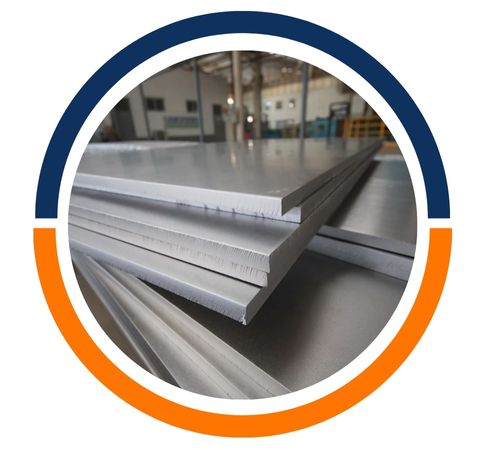

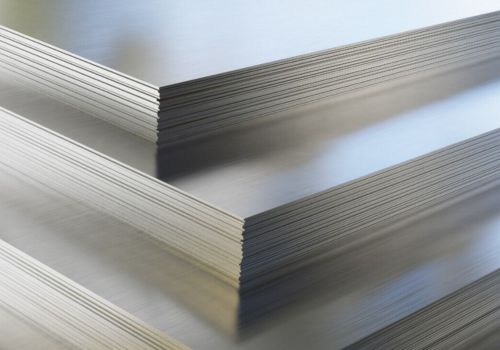

Aluminium 5005 Hot Rolled Sheets

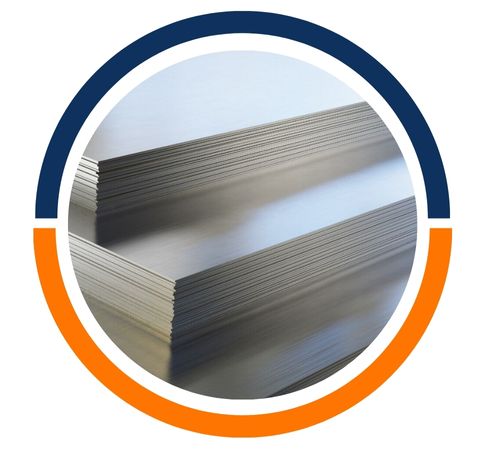

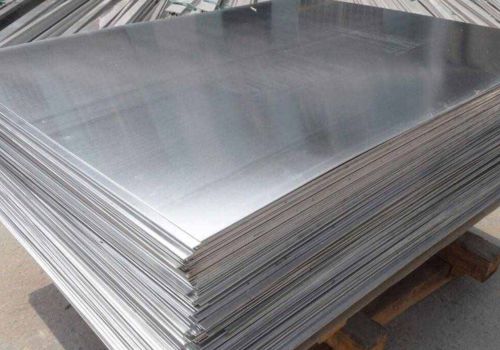

Aluminum 5005 Cold Rolled Sheets

Aluminium 5005 Clad Sheets Distributor in USA, Al 5005 Perforated Plates Supplier in Houston , Aluminium Alloy 5005 Sheet Weight Chart, Al 5005 Plates Exporter in Houston , Alumnium 5005 Polished Sheets Manufacturer in Los Angeles , Aluminium 5005 Shim Sheet and Plate Price List in Texas, Aluminium 5005 Chequered Plates Sizes in mm, Alumnium Alloy 5005 Hot Rolled Plate Distributor in Texas, Al 5005 Sheets and Plates California

Specifications of Aluminium 5005 Sheets and Plates

Standards : ASTM B209 / ASME SB209

Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,H32,H34,H36,H38

Thickness : 0.2-250

Width : 100-2600

Length : 500-10000

Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.

Finish :Mill, Customer specific finish

Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet

Chemical Compositions of Aluminium 5005 Sheets and Plates

Element	%	Element	%
Aluminium	Balance	Manganese	0.20 max
Magnesium	0.50 – 1.10	Chromium	0.10 max
Silicon	0.30max	Zinc	0.25 max
Iron	0.07 max	Others, each	0.05 max
Copper	0.20 max	Others, total	0.15 max

Mechanical Properties of Aluminium 5005 Sheets and Plates

Temper	0.2% Proof Stress, MPa min†	Tensile Strength, MPa	Elongation % min‡
O (annealed)	35	105 – 145	12 – 22
H12	95	125 – 165	2 – 8
H14	115	145 – 185	1 – 6
H16	135	165 – 205	1 – 3
H18	–	> 185	1 – 3
H32	85	115 – 160	3 – 9
H34	105	135 – 180	2 – 7
H36	125	160 – 200	1 – 4
H38	–	> 180	1 – 4

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium 5005 Sheets and Plates

Largest Aluminium 5005 Sheets and Plates Manufacturer and Exporter in Houston , USA

Joey Aluminium based in Houston , USA is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium 5005 Sheets and Plates

Standard	UNS	ISO	BS	DIN
5005	A95005	AlMg1	N41	3.3315

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium 5005 Sheets and Plates

Sizes (mm)	Theoretical Mass KG/Plate
2000 X 1000 X 0.5	2500 X 1250 X 0.5
2000 X 1000 X 0.7	2500 X 1250 X 0.7
2000 X 1000 X 0.9	2500 X 1250 X 0.9
2000 X 1000 X 1.2	2500 X 1250 X 1.2
3000 X 1500 X 1.2	2000 X 1000 X 1.6
2500 X 1250 X 1.6	3000 X 1500 X 1.6
2000 X 1000 X 2.0	2500 X 1250 X 2.0
3000 X 1500 X 2.0	2500 X 1250 X 2.5
2.79	4.36
3.91	6.10
5.02	7.85
6.74	10.46
15.01	8.93
13.95	20.09
11.16	17.44
25.11	21.80

Are Custom Sizes Available For Aluminium 5005 Sheets and Plates?

Yes, we offer custom sizes for Aluminium 5005 Sheets and Plates to meet specific project needs. Our team at Joey Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@joeyaluminium.us

Uses of Aluminium 5005 Sheets and Plates

Aluminium 5005 Sheets and Plates are utilized in architectural and decorative purposes like curtain walls, signboards, facades, roofing panels, and interior finishes owing to their superior anodizing response and smooth finish. They are also utilized in cookware, storage tanks, and pressure vessels due to their excellent weldability and resistance to corrosion. In the transport sector, sheets of 5005 are utilized in body panels of vehicles and trim. Their formability and lightness enable them to be best suited for general sheet metal work, control panels, and electrical enclosures. In general, Aluminium 5005 Sheets and Plates provide a dependable solution for both structural and decorative usage.
