Joey Aluminium, a prominent producer and supplier of premium aluminium 6061 engraved plates with headquarters in Houston, USA, provides long-lasting, high-quality solutions for a variety of structural and ornamental uses. These plates, which are made with cutting-edge technologies to satisfy international standards, are well-known for their strength, resistance to corrosion, and superb finish. Joey Aluminium offers specialised sizes and quick delivery to sectors like construction, transportation, aerospace, and marine. Joey Aluminium has established a solid reputation for dependable aluminium solutions in the US and international markets thanks to its dedication to product excellence and customer satisfaction.

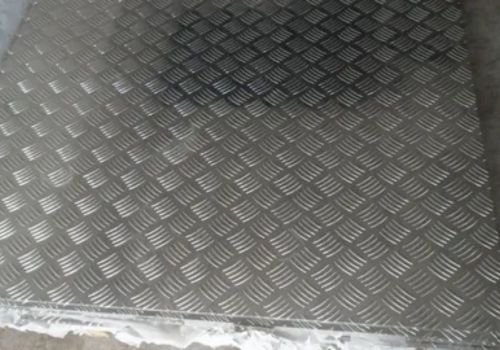

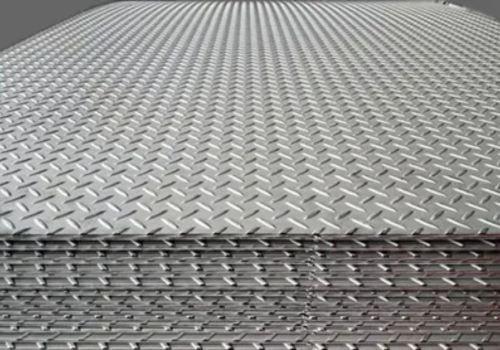

The main alloying elements of aluminium 6061 Chequered Plates are silicon (0.4–0.8%) and magnesium (0.8–1.2%), with aluminium making up 95.8–98.6% of the total. Iron, copper, chromium, and manganese are also present in trace amounts. These plates have good elongation (8–15%), a yield strength of about 240 MPa, and a tensile strength of about 290 MPa. They have medium-to-high strength, excellent weldability, and resistance to corrosion. They are appropriate for structural and flooring applications in both indoor and outdoor settings because of their raised chequered pattern, which improves slip resistance.
Standards : ASTM B209 / ASME SB209
Temper : O, T3, T4, T5, T6, T651, T6511
Thickness : 0.3-600
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

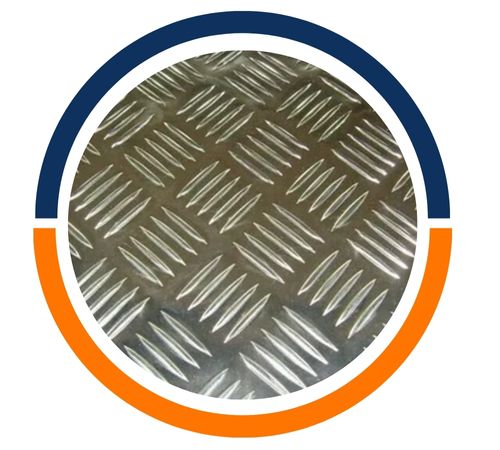

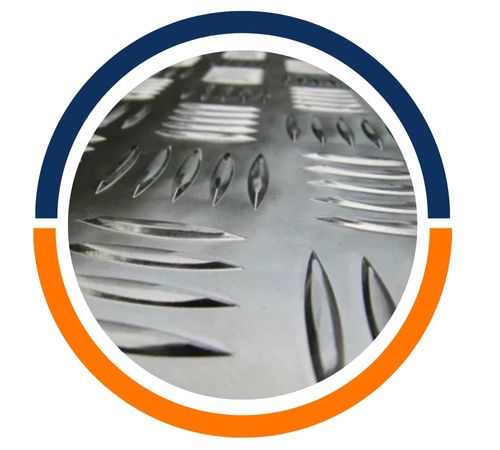

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| UNS | EN | DIN | ISO | BS (OLD) | USA | WNR |
| A96061 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 | AA6061 | 3.3211 |
| Mn | Si | Cr | Cu | Fe | Zn | Al | Mg | Ti | Other Each/Total |
| 0.15 | 0.4-0.8 | 0.15-0.35 | 0.15-0.4 | 0.7 | 0.25 | Remainder | 0.8-1.2 | 0.15 | 0.005/0.15 |
| Tensile Strengtd (PSI) | Yield Strengtd (PSI) | Shear Strengtd (PSI) | Elongation in 2″ | Brinell Hardness |
| 45,000 | 40,000 | 31,000 | 12 | 95 |
Joey Aluminium based in Houston , USA is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 6061 Chequered Plates to meet specific project needs. Our team at Joey Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@joeyaluminium.us
Aluminium 6061 Chequered Plates are used extensively in many different industries because of their strength, durability, and non-slip surface. They are utilised for loading ramps, trailer flooring, and truck flooring in transportation. They are used as wall panels, catwalks, and stair treads in construction. Because these plates don’t corrode, the marine industry uses them for dock surfaces and boat decks. They are also used in industrial walkways and decorative finishes in architecture. They are a sensible option for both structural and safety-focused applications in demanding environments because of their durability, ease of fabrication, and anti-skid qualities.
