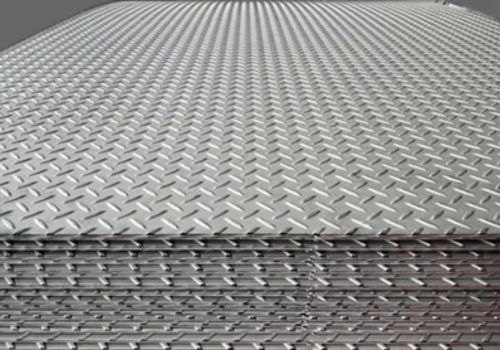

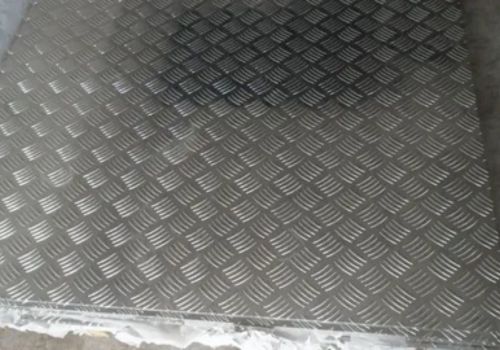

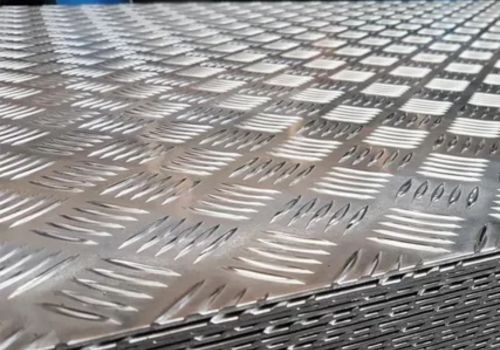

Joey Aluminium, based in Houston, USA, stands out as a top-notch manufacturer and supplier of high-performance Aluminium 7075 Chequered Plates. We cater to industries that require outstanding strength, durability, and slip resistance. Our 7075 chequered plates are designed for structural reliability and heavy-duty applications, crafted with cutting-edge technology and rigorous quality control to guarantee exceptional mechanical properties and a flawless surface finish. Renowned for their impressive fatigue strength and corrosion resistance, Joey Aluminium offers Aluminium 7075 Chequered Plates in a variety of sizes and patterns, serving sectors like aerospace, military, marine, and industrial applications throughout the USA.
These Aluminium 7075 Chequered Plates are made from a robust, heat-treatable aluminium-zinc alloy that includes around 5.6–6.1% zinc, 2.1–2.5% magnesium, and 1.2–1.6% copper, along with trace amounts of chromium. In T6 and T651 tempers, this alloy boasts tensile strengths that surpass 500 MPa and offers excellent fatigue resistance. The raised chequered pattern not only enhances slip resistance but also makes these plates perfect for flooring and structural uses where safety and strength are paramount.
Standards : ASTM B209 / ASME SB209
Temper : T3, T4, T5, T6, T651, T6511
Thickness : 0.2-300
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Chequered Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

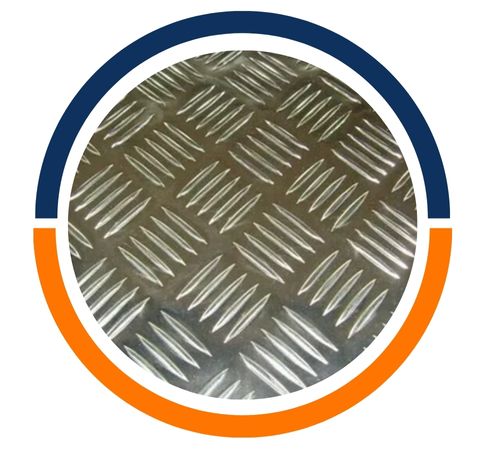

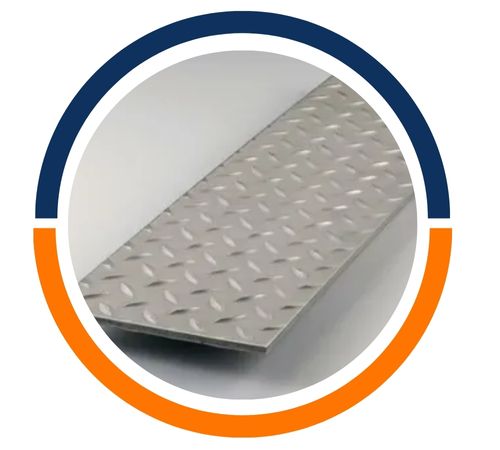

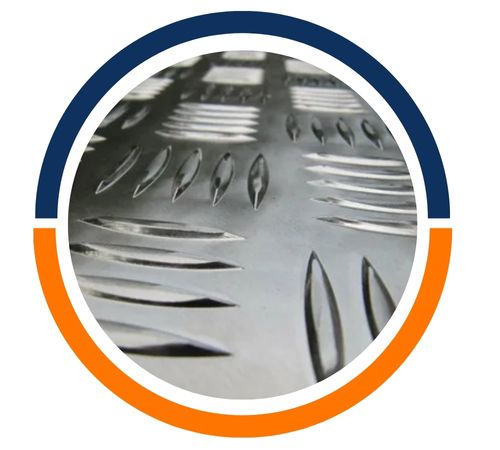

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Chequered Plate
| UNS | EN | DIN,WNr | JIS | AFNOR | ISO | BS | GOST |
| A97075 | ENAW-AlZn5.5MgCu EN AW-7075 | 3.4365 AlZnMgCu1.5 | 7075 | 7075 A-Z5GU | AlZn6MgCu | 7075 L95 L96 | V95 |
| Weight % | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Each | Total |
| Minimum | 1.20 | 2.10 | 0.18 | 5.10 | ||||||
| Maximum | 0.40 | 0.50 | 2.00 | 0.30 | 2.90 | 0.28 | 6.10 | 0.20 | 0.05 | 0.15 |
| Temper | Tensile | Hardness | ||||
| Ultimate | Yield | Elongation | Brinell | |||
| KSI | MPA | KSI | MPA | % | ||
| T6, T651 | 83 | 572 | 73 | 503 | 11 | 150 |
| T73, T7351 | 73 | 503 | 63 | 434 | 13 | N/A |
Joey Aluminium based in Houston , USA is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 7075 Chequered Plates to meet specific project needs. Our team at Joey Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@joeyaluminium.us
Aluminium 7075 Chequered Plates find their place in high-stress environments where strength and anti-slip features are crucial. You’ll often see them in military vehicle flooring, aerospace platforms, aircraft maintenance walkways, marine docks, heavy-duty industrial steps, and high-performance transport systems. Their corrosion resistance, impressive strength-to-weight ratio, and patterned surface make them ideal for tough, high-load conditions. Joey Aluminium is proud to provide Aluminium 7075 Chequered Plates in custom sizes, thicknesses, and finishes tailored to meet the unique demands of various industries across the United States.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
